929834-01-14
3M
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 14POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$1.4
- 10$1.228
- 25$1.156
- 50$1.1076
- 100$1.0595
- 250$0.9632
- 500$0.86688
Quote It
Technical Details
- Series:929
- Package:Bulk
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:14
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.235" (5.97mm)
- Contact Length - Post:0.110" (2.79mm)
- Overall Contact Length:0.445" (11.30mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin-Lead
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:-
- Contact Material:Copper Alloy
- Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2.5A
- Voltage Rating:-
Related Products
CONN HEADER 10POS 2MM GOLD SMD
- 1: $1.40000
CONN HEADER
- 1: $1.40000
CONN HEADER
- 1: $1.40000
CONN HEADER
- 1: $1.40000
CONN HEADER
- 1: $1.40000
CONN HEADER
- 1: $1.40000
CONN HEADER
- 1: $1.40000
CONN HEADER
- 1: $1.40000

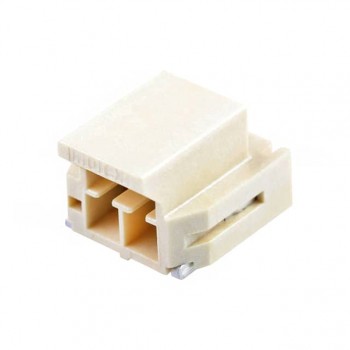

NANO-FIT HDR SMT RA SGL 2CKT 30A
