800-10-009-10-002000

Mill-Max
In Stock: 248

Can ship immediately

Pricing:
  • 1$1.49
  • 10$1.35238
  • 25$1.2694
  • 50$1.21435
  • 100$1.1591
  • 250$1.04867
  • 500$0.96589

Quote It

Technical Details

  • Series:800
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:9
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.142" (3.61mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.385" (9.77mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


65007-82MN-5310

SOLDER CONTACT

  • 1: $1.49000

0022288241

CONN HEADER R/A 24POS 2.54MM

0022288241 Datasheet
  • 1: $1.49000
  • 10: $1.35400
  • 25: $1.27080

0022288233

CONN HEADER R/A 23POS 2.54MM

0022288233 Datasheet
  • 1: $1.49000
  • 10: $1.35200
  • 25: $1.26960

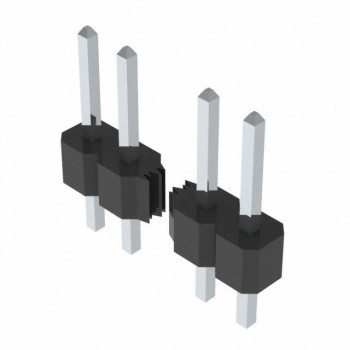

PEC30SAAN

CONN HEADER VERT 30POS 2.54MM

PEC30SAAN Datasheet
  • 1: $1.49000
  • 10: $1.34800
  • 25: $1.26520

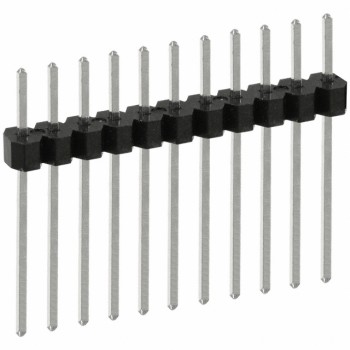

PEC11SAHN

CONN HEADER VERT 11POS 2.54MM

PEC11SAHN Datasheet
  • 1: $1.49000
  • 10: $1.35600
  • 25: $1.27360

PBC10SAGN

CONN HEADER VERT 10POS 2.54MM

PBC10SAGN Datasheet
  • 1: $1.49000
  • 10: $1.34800
  • 25: $1.26520

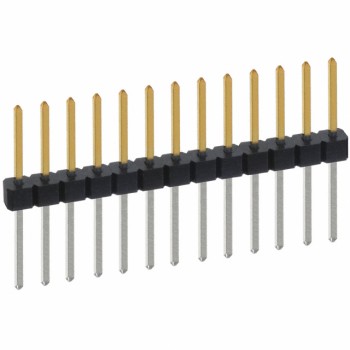

PBC13SFBN

CONN HEADER VERT 13POS 2.54MM

PBC13SFBN Datasheet
  • 1: $1.49000
  • 10: $1.34800
  • 25: $1.26560

PEC12SBCN

CONN HEADER R/A 12POS 2.54MM

PEC12SBCN Datasheet
  • 1: $1.49000
  • 10: $1.35200
  • 25: $1.26960

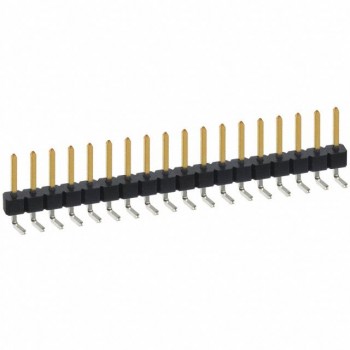

PBC18SBAN
