In Stock: 130

Can ship immediately

Pricing:
  • 1$1.50101
  • 6,000$1.23533

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.315" (8.00mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:0.551" (14.00mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.90µin (0.099µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Green
  • Current Rating (Amps):5A
  • Voltage Rating:-

Related Products


800-80-018-30-001101

CONN HEADER SMD 18POS 2.54MM

800-80-018-30-001101 Datasheet
  • 1: $1.50120
  • 450: $1.38244

351-80-117-00-003101

CONN HEADER VERT 17POS 2.54MM

351-80-117-00-003101 Datasheet
  • 1: $1.50137
  • 350: $1.38266

890-80-030-10-004101

CONN HEADER VERT 30POS 2.54MM

890-80-030-10-004101 Datasheet
  • 1: $1.50157
  • 350: $1.38283

882-70-028-20-001101

CONN HEADER R/A 28POS 2MM

882-70-028-20-001101 Datasheet
  • 1: $1.50194
  • 360: $1.36153

860-10-019-10-001101

CONN HEADER VERT 19POS 1MM

860-10-019-10-001101 Datasheet
  • 1: $1.50205
  • 220: $1.50205

0705550012

CONN HEADER R/A 13POS 2.54MM

0705550012 Datasheet
  • 1: $1.50214
  • 560: $1.38355

10127819-1811GLF

CONN HEADER R/A 18POS 4.2MM

  • 1: $1.50233
  • 300: $1.50233

77311-891-36LF

CONN HEADER VERT 36POS 2.54MM

77311-891-36LF Datasheet
  • 1: $1.50234
  • 1500: $1.43869

77311-892-36LF

CONN HEADER VERT 36POS 2.54MM

77311-892-36LF Datasheet
  • 1: $1.50234
  • 1500: $1.43869

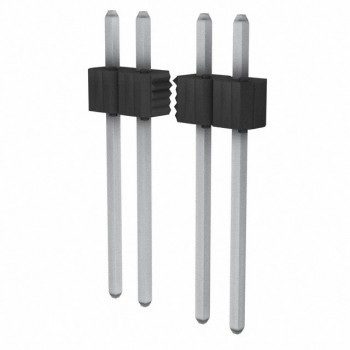

10118615-436022
