802-V3-008-22-002101

Preci-Dip
In Stock: 195

Can ship immediately

Pricing:
  • 1$1.50443
  • 370$1.31414

Quote It

Technical Details

  • Series:802
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:-
  • Insulation Height:0.272" (6.91mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


1-5176837-4

CONN HEADER R/A 30POS 2MM

1-5176837-4 Datasheet
  • 1: $1.50449
  • 10: $1.44682
  • 100: $1.22432

95278-801A28LF

CONN HEADER SMD 28POS 2.54MM

95278-801A28LF Datasheet
  • 1: $1.50468
  • 800: $1.39111

2-1445056-8

CONN HEADER SMD R/A 8POS 3MM

2-1445056-8 Datasheet
  • 1: $1.50484
  • 430: $1.50484

2-1445090-8

CONN HEADER SMD R/A 8POS 3MM

2-1445090-8 Datasheet
  • 1: $1.50484
  • 430: $1.50484

0901210778

CONN HEADER R/A 18POS 2.54MM

0901210778 Datasheet
  • 1: $1.50484
  • 3000: $1.50484

3-2842301-4

34P,2MM,SHRD HDR,DRVT,SN,TB W/CP

  • 1: $1.50516

3-2842285-4

34P,2MM,SHRD HDR,DRVT,SN,TB W/CP

  • 1: $1.50516

77313-802-64LF

CONN HEADER VERT 64POS 2.54MM

77313-802-64LF Datasheet
  • 1: $1.50518
  • 500: $1.39196

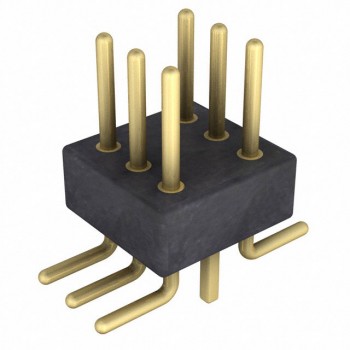

852-10-006-30-051101
