In Stock: 164

Can ship immediately

Pricing:
  • 1$1.53106

Quote It

Technical Details

  • Series:Quickie™
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:40
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:0.365" (9.27mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:Keying Slot
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


10075025-F01-22ULF

CONN HEADER VERT 22POS 2MM

10075025-F01-22ULF Datasheet
  • 1: $1.53107
  • 552: $1.41592

75844-194-20LF

CONN HEADER VERT 20POS 2.54MM

  • 1: $1.53108
  • 600: $1.41593

1-146282-4

CONN HEADER VERT 14POS 2.54MM

1-146282-4 Datasheet
  • 1: $1.53112
  • 500: $1.41576

350-80-119-01-666101

CONN HEADER VERT 19POS 2.54MM

350-80-119-01-666101 Datasheet
  • 1: $1.53120
  • 350: $1.41009

146744-1

CONN HEADER VERT 24POS 1.27MM

146744-1 Datasheet
  • 1: $1.53125
  • 8768: $1.44550

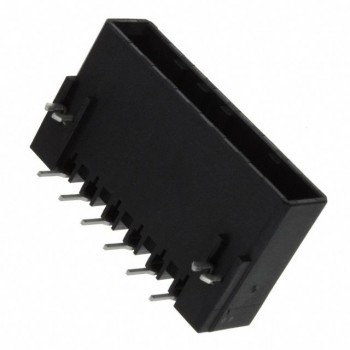

2-316131-2

CONN HEADER R/A 6POS 5.08MM

2-316131-2 Datasheet
  • 1: $1.53139
  • 5760: $1.32414

3-647116-5

CONN HEADER VERT 5POS 2.54MM

3-647116-5 Datasheet
  • 1: $1.53141
  • 2000: $1.53141

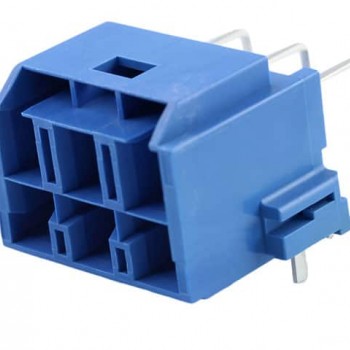

2035551026

CP65 WTB HDR RA TH REEL BLUE 6CK

  • 1: $1.53149

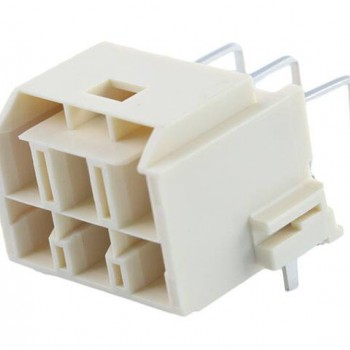

2035551226

CP65 WTB HDR RA TH REEL NAT 6CKT

  • 1: $1.53149

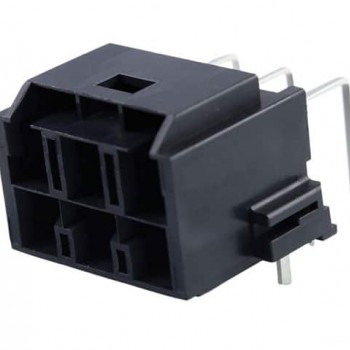

2035551126
