65863-470LF
Storage & Server IO (Amphenol ICC)- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 24POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 65863-470LF Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$1.54445
- 800$1.54445
Quote It
Technical Details
- Series:Quickie™
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:24
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Lock/Eject Hooks
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:0.150" (3.81mm)
- Overall Contact Length:-
- Insulation Height:0.640" (16.26mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold or Gold, GXT™
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Thermoplastic
- Features:Keying Slot
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products

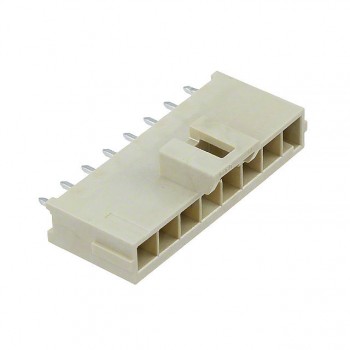

CONN HEADER SMD 8POS 2.54MM
