In Stock: 143

Can ship immediately

Pricing:
  • 1$1.56963

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:30
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.146" (3.70mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.94µin (0.100µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


0713492035

CONN HEADER SMD 6POS 2.54MM

0713492035 Datasheet
  • 1: $1.56996
  • 1944: $1.56996

DF3-14P-2DS(01)

CONN HEADER R/A 14POS 2MM

DF3-14P-2DS(01) Datasheet
  • 1: $1.57000
  • 10: $1.42038
  • 100: $1.21701

0022284243

CONN HEADER VERT 24POS 2.54MM

0022284243 Datasheet
  • 1: $1.57000
  • 10: $1.42700
  • 25: $1.33960

4-103328-0-14

CONN HEADER VERT 28POS 2.54MM

4-103328-0-14 Datasheet
  • 1: $1.57000
  • 10: $1.42491
  • 25: $1.33786

0702470852

CONN HEADER R/A 8POS 2.54MM

  • 1: $1.57000

PEC18SACN

CONN HEADER VERT 18POS 2.54MM

PEC18SACN Datasheet
  • 1: $1.57000
  • 10: $1.42600
  • 25: $1.33880

PEC09SBEN

CONN HEADER R/A 9POS 2.54MM

PEC09SBEN Datasheet
  • 1: $1.57000
  • 10: $1.42600
  • 25: $1.33880

PBC19SBAN

CONN HEADER R/A 19POS 2.54MM

PBC19SBAN Datasheet
  • 1: $1.57000
  • 10: $1.42800
  • 25: $1.34000

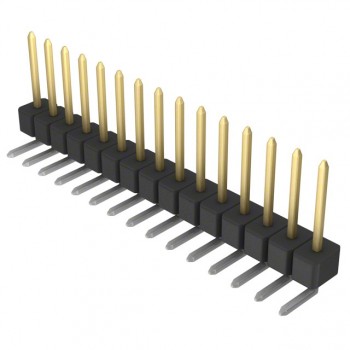

PBC15SGAN

CONN HEADER R/A 15POS 2.54MM

PBC15SGAN Datasheet
  • 1: $1.57000
  • 10: $1.42100
  • 25: $1.33400

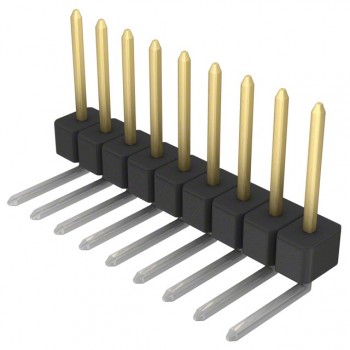

PBC09SGBN
