In Stock: 154

Can ship immediately

Pricing:
  • 1$1.59923
  • 300$1.47877

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:48
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.450" (11.43mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


77313-101-58LF

CONN HEADER VERT 58POS 2.54MM

77313-101-58LF Datasheet
  • 1: $1.59923
  • 300: $1.47877

850-10-016-40-251191

CONN HEADER SMD R/A 16POS 1.27MM

  • 1: $1.59939
  • 2000: $1.59939

828214-7

CONN HEADER VERT 7POS 2.54MM

828214-7 Datasheet
  • 1: $1.59958
  • 500: $1.55300

4-103741-0-24

CONN HEADER VERT 24POS 2.54MM

4-103741-0-24 Datasheet
  • 1: $1.60000
  • 10: $1.44757
  • 25: $1.35827

4-103239-0-11

CONN HEADER VERT 11POS 2.54MM

4-103239-0-11 Datasheet
  • 1: $1.60000
  • 10: $1.45297
  • 25: $1.36389

PEC13SAFN

CONN HEADER VERT 13POS 2.54MM

PEC13SAFN Datasheet
  • 1: $1.60000
  • 10: $1.45400
  • 25: $1.36560

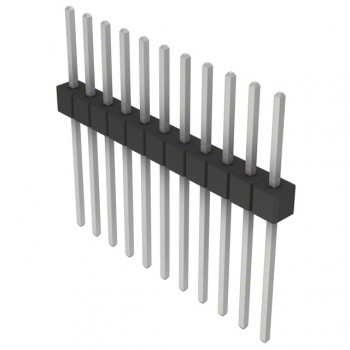

PEC11SFEN

CONN HEADER VERT 11POS 2.54MM

PEC11SFEN Datasheet
  • 1: $1.60000
  • 10: $1.45500
  • 25: $1.36640

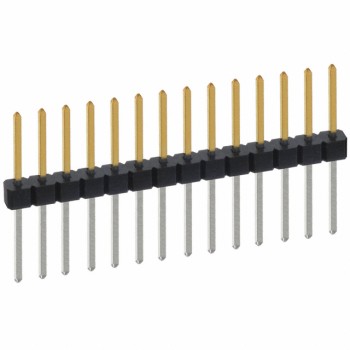

PBC14SFBN

CONN HEADER VERT 14POS 2.54MM

PBC14SFBN Datasheet
  • 1: $1.60000
  • 10: $1.45200
  • 25: $1.36320

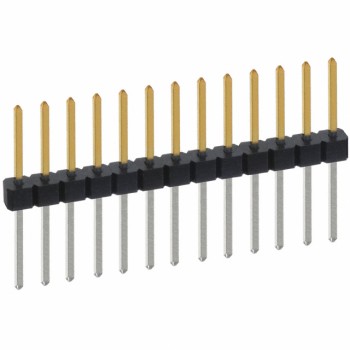

PBC13SFCN
