In Stock: 139

Can ship immediately

Pricing:
  • 1$1.61223

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:32
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.146" (3.70mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.94µin (0.100µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


5023521510

CONN HEADER SMD R/A 15POS 2MM

5023521510 Datasheet
  • 1: $1.61238
  • 2100: $1.61238

XG8W-3031

CONN HEADER VERT 30POS 2.54MM

XG8W-3031 Datasheet
  • 1: $1.61240
  • 100: $1.40900

XG8W-3044

CONN HEADER R/A 30POS 2.54MM

XG8W-3044 Datasheet
  • 1: $1.61240
  • 100: $1.40900

XG8W-4041

CONN HEADER VERT 40POS 2.54MM

XG8W-4041 Datasheet
  • 1: $1.61240
  • 100: $1.40900

800-V3-009-22-002101

CONN HEADER R/A 9POS 2.54MM

800-V3-009-22-002101 Datasheet
  • 1: $1.61271
  • 350: $1.40854

850-10-017-20-001101

CONN HEADER R/A 17POS 1.27MM

850-10-017-20-001101 Datasheet
  • 1: $1.61277
  • 256: $1.61277

68602-136HLF

CONN HEADER VERT 36POS 2.54MM

68602-136HLF Datasheet
  • 1: $1.61280
  • 200: $1.61280

2-2842283-6

26P,2MM,SHRD HDR,DRVT,0.38AU,TB

  • 1: $1.61280

2-2842237-6

26P,2MM,SHRD HDR,DRVT,0.38AU,TB

  • 1: $1.61280

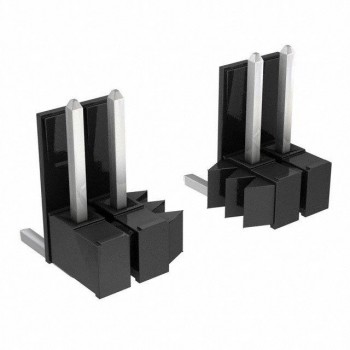

0022282330
