1053122116
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 16POS 2.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1053122116 Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$1.63923
- 72$1.37512
- 144$1.30963
- 504$1.1132
- 1,008$0.9495
- 5,040$0.85127
Quote It
Technical Details
- Series:Nano-Fit 105312
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.098" (2.50mm)
- Number of Positions:16
- Number of Rows:2
- Row Spacing - Mating:0.098" (2.50mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:-
- Insulation Height:0.356" (9.05mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:59.0µin (1.50µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:Board Lock
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:250V
Related Products

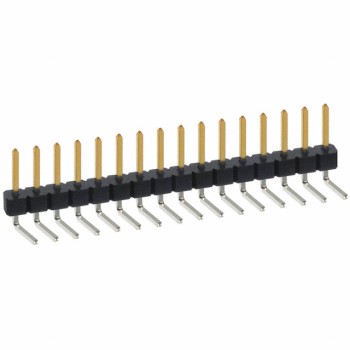

CONN HEADER R/A 16POS 2.54MM
