802-10-010-10-002000

Mill-Max
In Stock: 172

Can ship immediately

Pricing:
  • 1$1.68
  • 10$1.52452
  • 25$1.43165
  • 50$1.36925
  • 100$1.30696
  • 250$1.18251
  • 500$1.08916

Quote It

Technical Details

  • Series:802
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.142" (3.61mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.385" (9.77mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products

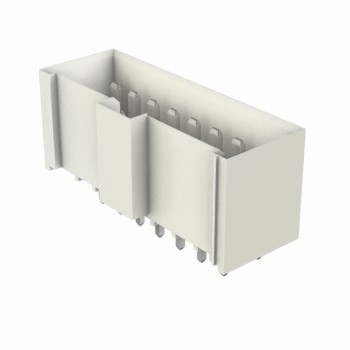

MDF6-18DP-3.5DSA(05)

CONN HEADER VERT 18POS 3.5MM

MDF6-18DP-3.5DSA(05) Datasheet
  • 1: $1.68000
  • 100: $1.61700

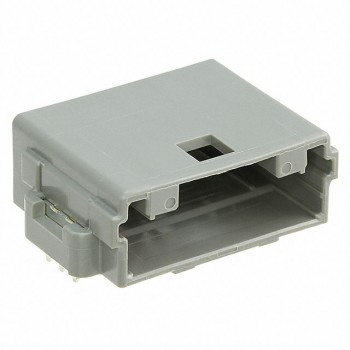

GT25-8P-2.2H(70)
