In Stock: 116

Can ship immediately

Pricing:
  • 1$1.6836
  • 300$1.55667

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:34
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:0.094" (2.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


77317-112-36LF

CONN HEADER R/A 36POS 2.54MM

77317-112-36LF Datasheet
  • 1: $1.68360
  • 400: $1.55668

77317-403-36LF

CONN HEADER R/A 36POS 2.54MM

77317-403-36LF Datasheet
  • 1: $1.68360
  • 400: $1.55668

77317-404-36LF

CONN HEADER R/A 36POS 2.54MM

77317-404-36LF Datasheet
  • 1: $1.68360
  • 400: $1.55668

77317-412-36LF

CONN HEADER R/A 36POS 2.54MM

77317-412-36LF Datasheet
  • 1: $1.68360
  • 400: $1.55668

77317-803-36LF

CONN HEADER R/A 36POS 2.54MM

77317-803-36LF Datasheet
  • 1: $1.68360
  • 400: $1.55668

77317-812-36LF

CONN HEADER R/A 36POS 2.54MM

77317-812-36LF Datasheet
  • 1: $1.68360
  • 400: $1.55668

0015916067

CONN HEADER SMD 6POS 2.54MM

0015916067 Datasheet
  • 1: $1.68403
  • 6900: $1.16801

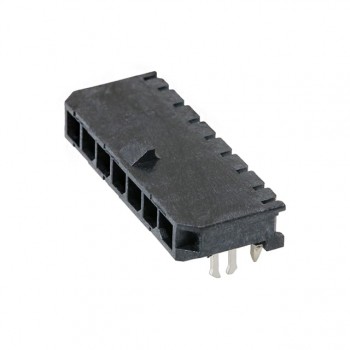

0436500710

CONN HEADER SMD R/A 7POS 3MM

  • 1: $1.68406

0877596005

CONN HEADER SMD 44POS 2MM

0877596005 Datasheet
  • 1: $1.68413
  • 2700: $1.68413

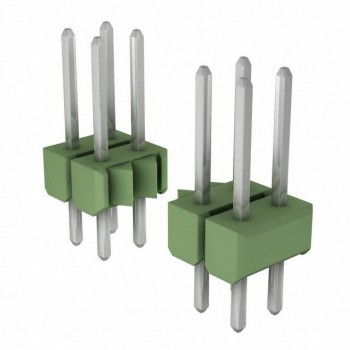

1-826944-0
