In Stock: 178

Can ship immediately

Pricing:
  • 1$1.68443
  • 210$1.68443

Quote It

Technical Details

  • Series:Minitek® Pwr 4.2
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:24
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.386" (9.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:100.0µin (2.54µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600V

Related Products

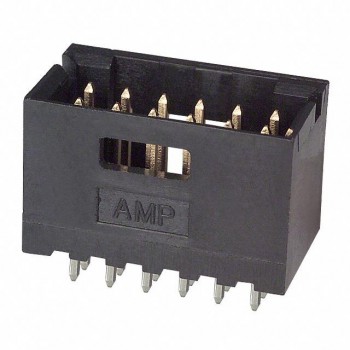

102618-4

CONN HEADER VERT 12POS 2.54MM

102618-4 Datasheet
  • 1: $1.68446
  • 1904: $1.53451

4-641127-2

CONN HEADER R/A 12POS 2.54MM

4-641127-2 Datasheet
  • 1: $1.68455
  • 1000: $1.45848

800-80-025-30-480101

CONN HEADER SMD 25POS 2.54MM

800-80-025-30-480101 Datasheet
  • 1: $1.68455
  • 310: $1.55132

67996-264HLF

CONN HEADER VERT 64POS 2.54MM

67996-264HLF Datasheet
  • 1: $1.68480
  • 100: $1.68480

0015915349

CONN HEADER SMD 34POS 2.54MM

0015915349 Datasheet
  • 1: $1.68507
  • 2592: $1.68507

3-2842278-4

34P,2MM,SHRD HDR,DRVT,SMD,0.1AU,

  • 1: $1.68513

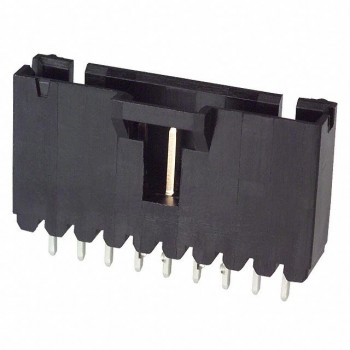

103908-8

CONN HEADER VERT 9POS 2.54MM

103908-8 Datasheet
  • 1: $1.68522
  • 1512: $1.58848

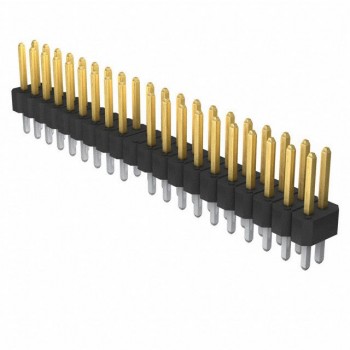

77314-171LF
