In Stock: 138

Can ship immediately

Pricing:
  • 1$1.68796

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.142" (3.60mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


892-80-036-20-002101

CONN HEADER R/A 36POS 2.54MM

892-80-036-20-002101 Datasheet
  • 1: $1.68797
  • 375: $1.55440

0026484241

CONN HEADER VERT 24POS 3.96MM

0026484241 Datasheet
  • 1: $1.68809
  • 1200: $1.68809

66506-013

CONN HEADER VERT 26POS 2.54MM

66506-013 Datasheet
  • 1: $1.68826
  • 800: $1.68826

66506-014

CONN HEADER VERT 26POS 2.54MM

66506-014 Datasheet
  • 1: $1.68826
  • 800: $1.68826

88880-013

CONN HEADER VERT 26POS 2.54MM

88880-013 Datasheet
  • 1: $1.68826
  • 800: $1.68826

88880-051LF

CONN HEADER VERT 26POS 2.54MM

88880-051LF Datasheet
  • 1: $1.68826
  • 800: $1.68826

65863-323LF

CONN HEADER VERT 26POS 2.54MM

65863-323LF Datasheet
  • 1: $1.68826
  • 800: $1.68826

88880-013LF

CONN HEADER VERT 26POS 2.54MM

  • 1: $1.68826
  • 800: $1.68826

1054302304

NANO-FIT HDR SMT RA SGL 4CKT 30A

  • 1: $1.68840

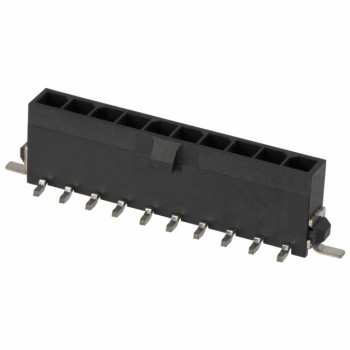

3-1445053-0
