In Stock: 102

Can ship immediately

Pricing:
  • 1$1.68995

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.059" (1.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


929835-01-24

CONN HEADER R/A 24POS 2.54MM

929835-01-24 Datasheet
  • 1: $1.69000
  • 10: $1.53700
  • 25: $1.44240

PBC11SAHN

CONN HEADER VERT 11POS 2.54MM

PBC11SAHN Datasheet
  • 1: $1.69000
  • 10: $1.53600
  • 25: $1.44200

PBC10SFEN

CONN HEADER VERT 10POS 2.54MM

PBC10SFEN Datasheet
  • 1: $1.69000
  • 10: $1.53500
  • 25: $1.44120

GEC15SABN-M30

CONN HEADER SMD 15POS 2.54MM

GEC15SABN-M30 Datasheet
  • 1: $1.69000
  • 10: $1.53100
  • 25: $1.43760

9-146277-0-10

CONN HEADER VERT 10POS 2.54MM

9-146277-0-10 Datasheet
  • 1: $1.69000
  • 10: $1.53833
  • 25: $1.44387

9-103759-0-09

CONN HEADER R/A 9POS 2.54MM

9-103759-0-09 Datasheet
  • 1: $1.69000
  • 10: $1.52905
  • 25: $1.43524

9-103329-0-14

CONN HEADER R/A 14POS 2.54MM

9-103329-0-14 Datasheet
  • 1: $1.69000
  • 10: $1.53617
  • 25: $1.44170

9-103330-0-10

CONN HEADER R/A 20POS 2.54MM

9-103330-0-10 Datasheet
  • 1: $1.69000
  • 10: $1.53725
  • 25: $1.44300

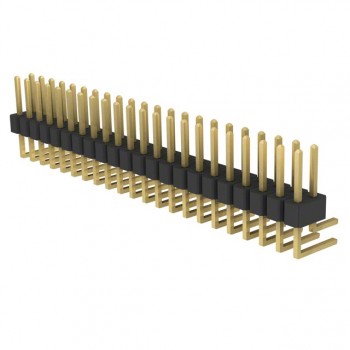

PRPC022DBAN-M71RC
