In Stock: 117

Can ship immediately

Pricing:
  • 1$1.6951
  • 200$1.56718

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:17
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.378" (9.60mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


451-10-212-00-003101

CONN HEADER VERT 12POS 2.54MM

451-10-212-00-003101 Datasheet
  • 1: $1.69536
  • 330: $1.48070

800-10-012-66-001101

CONN HEADER VERT 12POS 2.54MM

800-10-012-66-001101 Datasheet
  • 1: $1.69541
  • 250: $1.69541

1-103634-2

CONN HEADER R/A 13POS 2.54MM

1-103634-2 Datasheet
  • 1: $1.69547
  • 120: $1.69547

0010897360

CONN HEADER VERT 36POS 2.54MM

0010897360 Datasheet
  • 1: $1.69554
  • 2100: $1.69554

0022283231

CONN HEADER VERT 23POS 2.54MM

0022283231 Datasheet
  • 1: $1.69568
  • 2000: $1.69568

0022283237

CONN HEADER VERT 23POS 2.54MM

0022283237 Datasheet
  • 1: $1.69568
  • 2000: $1.69568

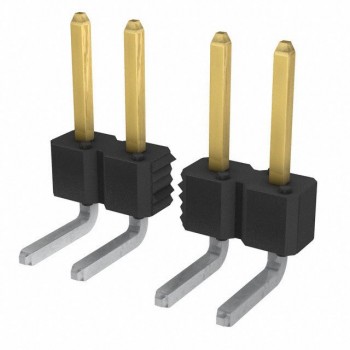

77315-813-36LF

CONN HEADER R/A 36POS 2.54MM

77315-813-36LF Datasheet
  • 1: $1.69577
  • 300: $1.56787

66506-014LF

CONN HEADER VERT 26POS 2.54MM

66506-014LF Datasheet
  • 1: $1.69593
  • 800: $1.69593

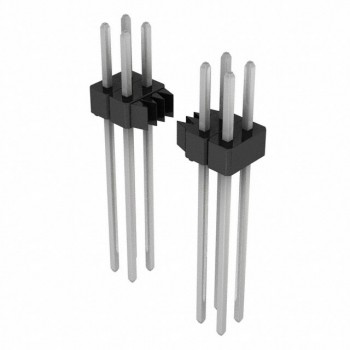

GEC07DAGN
