850-10-009-30-001191

Preci-Dip
In Stock: 184

Can ship immediately

Pricing:
  • 1$1.69679
  • 1,100$1.48207

Quote It

Technical Details

  • Series:850
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:9
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.118" (3.00mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.087" (2.20mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:Pick and Place
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:150VDC

Related Products


MX34014NFA

CONN HEADER R/A 14POS 2.2MM

MX34014NFA Datasheet
  • 1: $1.69681
  • 10: $1.54089
  • 100: $1.32076

3-2842282-4

34P,2MM,SHRD HDR,DRVT,0.1AU,TB

  • 1: $1.69706

3-2842236-4

34P,2MM,SHRD HDR,DRVT,0.1AU,TB

  • 1: $1.69707

1511200408

CONN HEADER SMD R/A 8POS 2MM

1511200408 Datasheet
  • 1: $1.69709
  • 3000: $1.69709

0702800766

CONN HEADER VERT 36POS 2.54MM

0702800766 Datasheet
  • 1: $1.69722
  • 2100: $1.69722

MX34036NF2

CONN HEADER R/A 36POS 2.2MM

MX34036NF2 Datasheet
  • 1: $1.69750
  • 539: $1.69750

77313-827-48LF

CONN HEADER VERT 48POS 2.54MM

77313-827-48LF Datasheet
  • 1: $1.69767
  • 300: $1.56977

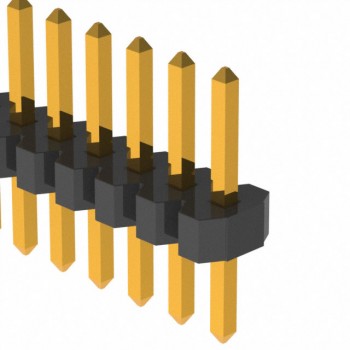

GRPB471VWVN-RC
