In Stock: 104

Can ship immediately

Pricing:
  • 1$1.70605
  • 10$1.67271
  • 100$1.54427
  • 250$1.35111
  • 500$1.25503

Quote It

Technical Details

  • Series:WR-MPC3
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.290" (7.37mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):5A
  • Voltage Rating:250V

Related Products


350-80-133-01-609101

CONN HEADER VERT 17POS 5.08MM

350-80-133-01-609101 Datasheet
  • 1: $1.70619
  • 310: $1.57129

NRPN182MAMP-RC

CONN HEADER SMD 36POS 2MM

NRPN182MAMP-RC Datasheet
  • 1: $1.70694
  • 10: $1.64017
  • 100: $1.36695

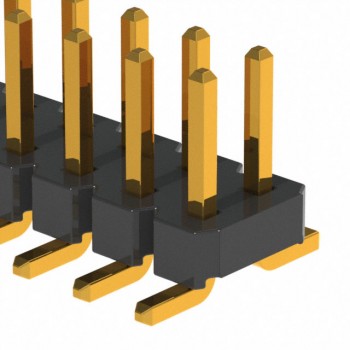

NRPN182MAMS-RC
