In Stock: 101

Can ship immediately

Pricing:
  • 1$1.79007
  • 1,008$1.79007

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:13
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:0.589" (14.96mm)
  • Insulation Height:0.549" (13.94mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


800-V3-019-20-101101

CONN HEADER R/A 10POS 5.08MM

800-V3-019-20-101101 Datasheet
  • 1: $1.79007
  • 290: $1.69755

5-146247-1

CONN HEADER R/A 16POS 2.54MM

5-146247-1 Datasheet
  • 1: $1.79029
  • 1456: $1.63090

SBH41-NBPB-D20-RA-BK

CONN HEADER R/A 40POS 1.27MM

SBH41-NBPB-D20-RA-BK Datasheet
  • 1: $1.79046
  • 1000: $ 1.79046

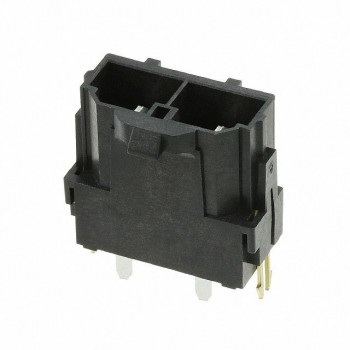

0428192224

CONN HEADER VERT 2POS 10MM

0428192224 Datasheet
  • 1: $1.79046
  • 1872: $1.79046

BE12P-SHF-1AA(LF)(SN)

CONN HEADER VERT 12POS 2.5MM

  • 1: $1.79050
  • 100: $1.79050

5018763041

CONN HEADER R/A 30POS 2MM

5018763041 Datasheet
  • 1: $1.79060

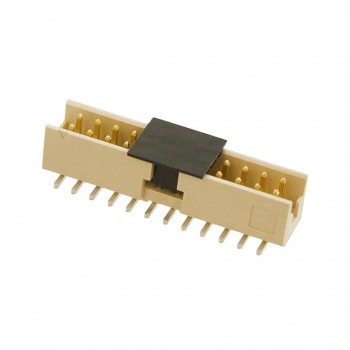

98424-F52-24ALF
