M22-2042005

Harwin
In Stock: 157

Can ship immediately

Pricing:
  • 1$1.824
  • 400$1.7119

Quote It

Technical Details

  • Series:M22
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Cuttable
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:40
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.138" (3.50mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.157" (4.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA6T), Nylon 6T
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:-

Related Products


850-10-013-30-001101

CONN HEADER SMD 13POS 1.27MM

850-10-013-30-001101 Datasheet
  • 1: $1.82404
  • 280: $1.72957

M20-9724045

CONN HEADER VERT 80POS 2.54MM

M20-9724045 Datasheet
  • 1: $1.82410
  • 1000: $1.72405

804-V3-009-22-002101

CONN HEADER R/A 9POS 2.54MM

804-V3-009-22-002101 Datasheet
  • 1: $1.82419
  • 310: $1.59335

57102-F08-11LF

CONN HEADER VERT 22POS 2MM

  • 1: $1.82427

57102-S08-11ULF

CONN HEADER VERT 22POS 2MM

57102-S08-11ULF Datasheet
  • 1: $1.82427
  • 520: $1.73636

57102-G08-11LF

CONN HEADER VERT 22POS 2MM

57102-G08-11LF Datasheet
  • 1: $1.82427
  • 700: $1.73637

77313-115-40LF

CONN HEADER VERT 40POS 2.54MM

77313-115-40LF Datasheet
  • 1: $1.82428
  • 500: $1.73636

77311-1AG-36LF

CONN HEADER VERT 36POS 2.54MM

77311-1AG-36LF Datasheet
  • 1: $1.82428
  • 500: $1.73636

77311-403-36LF

CONN HEADER VERT 36POS 2.54MM

77311-403-36LF Datasheet
  • 1: $1.82428
  • 500: $1.73636

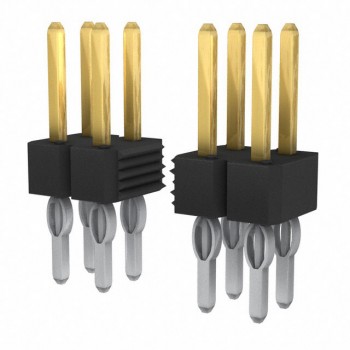

93690-103-36LF
