456-V3-210-00-014101

Preci-Dip
In Stock: 148

Can ship immediately

Pricing:
  • 1$1.84603
  • 300$1.61253

Quote It

Technical Details

  • Series:456
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:10
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.378" (9.60mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin
  • Contact Material:Bronze
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


77313-124-56LF

CONN HEADER VERT 56POS 2.54MM

77313-124-56LF Datasheet
  • 1: $1.84603
  • 300: $1.70677

77317-112-38LF

CONN HEADER R/A 38POS 2.54MM

77317-112-38LF Datasheet
  • 1: $1.84605
  • 400: $1.70678

830-10-014-20-001101

CONN HEADER R/A 14POS 2MM

830-10-014-20-001101 Datasheet
  • 1: $1.84623
  • 300: $1.61273

830-10-014-40-001101

CONN HEADER SMD R/A 14POS 2MM

830-10-014-40-001101 Datasheet
  • 1: $1.84623
  • 300: $1.61273

350-80-123-00-019101

CONN HEADER VERT 23POS 2.54MM

350-80-123-00-019101 Datasheet
  • 1: $1.84642
  • 260: $1.84608

399-80-123-10-009101

CONN HEADER R/A 23POS 2.54MM

399-80-123-10-009101 Datasheet
  • 1: $1.84644
  • 500: $1.70034

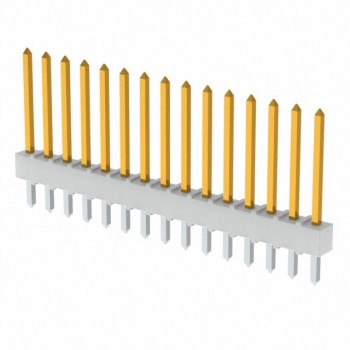

0022102152
