0436501226

Woodhead - Molex
In Stock: 142

Can ship immediately

Pricing:
  • 1$1.85223
  • 1,000$1.85223

Quote It

Technical Details

  • Series:Micro-Fit 3.0 43650
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:12
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.390" (9.91mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Solder Retention
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0713083214

CONN HEADER SMD 14POS 2.54MM

0713083214 Datasheet
  • 1: $1.85287
  • 3024: $1.85287

800-10-017-20-001101

CONN HEADER R/A 17POS 2.54MM

800-10-017-20-001101 Datasheet
  • 1: $1.85307
  • 300: $1.75723

800-80-016-66-001101

CONN HEADER VERT 16POS 2.54MM

800-80-016-66-001101 Datasheet
  • 1: $1.85308
  • 400: $1.85300

450-80-218-00-106191

CONN HEADER SMD 18POS 2.54MM

  • 1: $1.85317
  • 600: $1.70670

57102-F06-12ULF

CONN HEADER VERT 24POS 2MM

57102-F06-12ULF Datasheet
  • 1: $1.85325
  • 480: $1.71360

77311-132-36LF

CONN HEADER VERT 36POS 2.54MM

77311-132-36LF Datasheet
  • 1: $1.85327
  • 300: $1.71360

350-80-123-01-666101

CONN HEADER VERT 23POS 2.54MM

350-80-123-01-666101 Datasheet
  • 1: $1.85328
  • 290: $1.70676

68664-074LF

CONN HEADER VERT 16POS 2.54MM

68664-074LF Datasheet
  • 1: $1.85334
  • 800: $1.85334

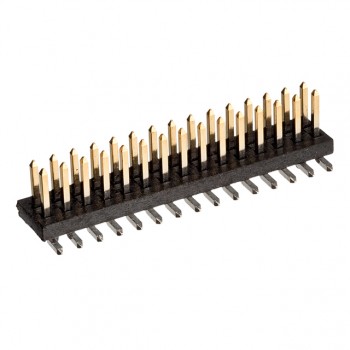

M50-3611542

CONN HEADER SMD 30POS 1.27MM

M50-3611542 Datasheet
  • 1: $1.85360
  • 10: $1.78063
  • 100: $1.48406

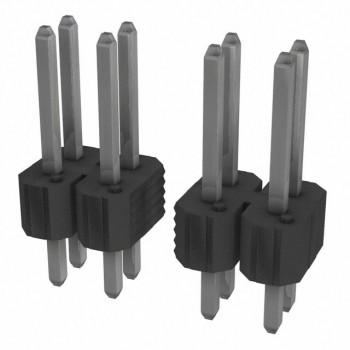

68491-472
