In Stock: 150

Can ship immediately

Pricing:
  • 1$1.85632
  • 1,000$1.85632

Quote It

Technical Details

  • Series:MTA-156
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:0.400" (10.16mm)



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:0.650" (16.51mm)
  • Insulation Height:0.125" (3.18mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600VAC

Related Products


98414-F06-28LF

CONN HEADER VERT 28POS 2MM

98414-F06-28LF Datasheet
  • 1: $1.85640
  • 300: $1.85640

0717640316

CONN HEADER R/A 16POS 2.54MM

0717640316 Datasheet
  • 1: $1.85668
  • 2080: $1.85668

0022283362

CONN HEADER VERT 36POS 2.54MM

0022283362 Datasheet
  • 1: $1.85710
  • 1500: $1.85710

0022283368

CONN HEADER VERT 36POS 2.54MM

0022283368 Datasheet
  • 1: $1.85710
  • 1500: $1.85710

800-80-025-20-004101

CONN HEADER R/A 25POS 2.54MM

800-80-025-20-004101 Datasheet
  • 1: $1.85712
  • 260: $1.85685

2-2373378-2

22P,2MM,SHRD HDR,DRVT,SMD,0.76AU

  • 1: $1.85753

0022111121

CONN HEADER VERT 12POS 2.5MM

  • 1: $1.85757

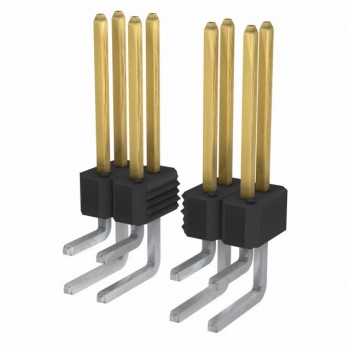

77317-114-40LF
