0901303318

Woodhead - Molex
In Stock: 114

Can ship immediately

Pricing:
  • 1$1.85906

Quote It

Technical Details

  • Series:C-Grid III 90130
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:18
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.266" (6.75mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:-
  • Insulation Height:0.384" (9.75mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


2-640453-1

CONN HEADER R/A 21POS 2.54MM

2-640453-1 Datasheet
  • 1: $1.85908
  • 500: $1.85908

350-80-131-01-899101

CONN HEADER SMD 31POS 2.54MM

350-80-131-01-899101 Datasheet
  • 1: $1.85919
  • 260: $1.85892

802-80-026-30-001101

CONN HEADER SMD 26POS 2.54MM

802-80-026-30-001101 Datasheet
  • 1: $1.85920
  • 300: $1.85893

892-80-066-10-002101

CONN HEADER VERT 66POS 2.54MM

892-80-066-10-002101 Datasheet
  • 1: $1.85934
  • 290: $1.71231

2035591007

CONN HEADER SMD R/A 10POS 1MM

  • 1: $1.85939
  • 7800: $1.85939

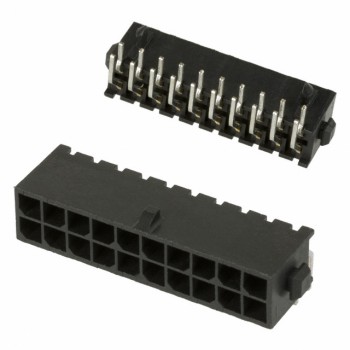

5-794620-0
