In Stock: 188

Can ship immediately

Pricing:
  • 1$1.8844
  • 300$1.8844

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:58
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.266" (6.75mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:0.480" (12.19mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:78.7µin (2.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


95278-401A30LF

CONN HEADER SMD 30POS 2.54MM

95278-401A30LF Datasheet
  • 1: $1.88441
  • 370: $1.88441

64991-S15-4RLF

CONN HEADER VERT 30POS 2.54MM

64991-S15-4RLF Datasheet
  • 1: $1.88442
  • 1140: $1.88442

75160-196-36LF

CONN HEADER VERT 36POS 2.54MM

75160-196-36LF Datasheet
  • 1: $1.88442
  • 1000: $1.74234

0741620008

CONN HEADER R/A 8POS 2.54MM

0741620008 Datasheet
  • 1: $1.88468
  • 2160: $1.88468

0026655080

CONN HEADER R/A 8POS 3.96MM

0026655080 Datasheet
  • 1: $1.88468
  • 1600: $1.88468

890-18-023-10-003101

CONN HEADER VERT 23POS 2.54MM

890-18-023-10-003101 Datasheet
  • 1: $1.88493
  • 270: $1.83593

008283121102868

WIRE TO BOARD

  • 1: $1.88500

008283121103868

WIRE TO BOARD

  • 1: $1.88500

4-641214-2

CONN HEADER R/A 12POS 2.54MM

4-641214-2 Datasheet
  • 1: $1.88507
  • 1000: $1.63211

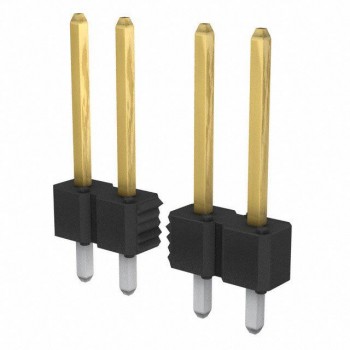

77311-115-12LF
