852-10-014-10-002101

Preci-Dip
In Stock: 123

Can ship immediately

Pricing:
  • 1$1.90978
  • 270$1.81115

Quote It

Technical Details

  • Series:852
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:14
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.118" (3.00mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.319" (8.10mm)
  • Insulation Height:0.075" (1.90mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:150VDC

Related Products


0436500921

CONN HEADER SMD 9POS 3MM

0436500921 Datasheet
  • 1: $1.90994
  • 1000: $1.81903

PEC02DBDN

CONN HEADER R/A 4POS 2.54MM

PEC02DBDN Datasheet
  • 1: $1.91000
  • 10: $1.70600
  • 100: $1.40460

929836-09-11

CONN HEADER VERT 22POS 2.54MM

929836-09-11 Datasheet
  • 1: $1.91000
  • 10: $1.73200
  • 25: $1.62600

929836-02-11

CONN HEADER VERT 22POS 2.54MM

929836-02-11 Datasheet
  • 1: $1.91000
  • 10: $1.73200
  • 25: $1.62600

929836-08-11

CONN HEADER VERT 22POS 2.54MM

929836-08-11 Datasheet
  • 1: $1.91000
  • 10: $1.73200
  • 25: $1.62600

929836-05-11

CONN HEADER VERT 22POS 2.54MM

929836-05-11 Datasheet
  • 1: $1.91000
  • 10: $1.73200
  • 25: $1.62600

929835-01-27

CONN HEADER R/A 27POS 2.54MM

929835-01-27 Datasheet
  • 1: $1.91000
  • 10: $1.72900
  • 25: $1.62280

PBC20SABN

CONN HEADER VERT 20POS 2.54MM

PBC20SABN Datasheet
  • 1: $1.91000
  • 10: $1.73100
  • 25: $1.62520

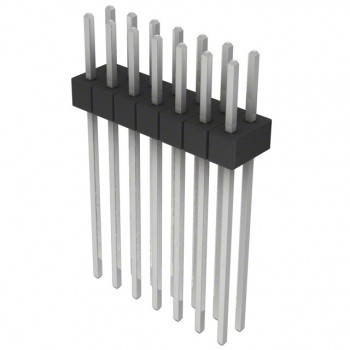

PEC07DAGN

CONN HEADER VERT 14POS 2.54MM

PEC07DAGN Datasheet
  • 1: $1.91000
  • 10: $1.73200
  • 25: $1.62600

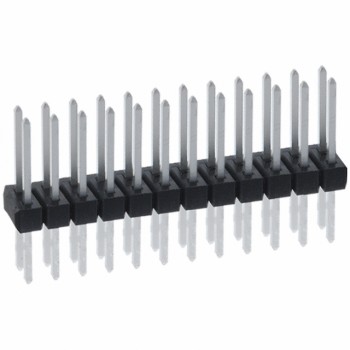

PEC12DFBN
