892-70-070-10-002101

Preci-Dip
In Stock: 159

Can ship immediately

Pricing:
  • 1$1.91627
  • 260$1.886

Quote It

Technical Details

  • Series:892
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:70
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.276" (7.00mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.494" (12.54mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


850-10-011-30-001191

CONN HEADER SMD 11POS 1.27MM

  • 1: $1.91632
  • 1100: $1.67393

830-80-023-20-001101

CONN HEADER R/A 23POS 2MM

830-80-023-20-001101 Datasheet
  • 1: $1.91642
  • 260: $1.76485

830-80-023-40-001101

CONN HEADER SMD R/A 23POS 2MM

830-80-023-40-001101 Datasheet
  • 1: $1.91642
  • 260: $1.76485

802-10-018-10-001101

CONN HEADER VERT 18POS 2.54MM

802-10-018-10-001101 Datasheet
  • 1: $1.91660
  • 350: $1.81749

77313-822-56LF

CONN HEADER VERT 56POS 2.54MM

77313-822-56LF Datasheet
  • 1: $1.91677
  • 300: $1.77257

0702871029

CONN HEADER VERT 62POS 2.54MM

0702871029 Datasheet
  • 1: $1.91690
  • 1400: $1.91690

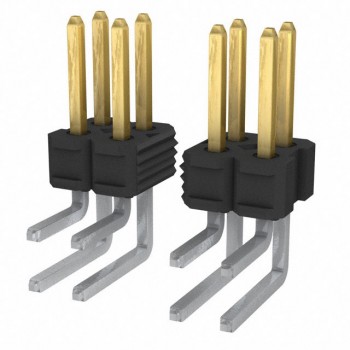

77319-103-24LF

CONN HEADER R/A 24POS 2.54MM

77319-103-24LF Datasheet
  • 1: $1.91692
  • 600: $1.77242

77319-803-24LF

CONN HEADER R/A 24POS 2.54MM

77319-803-24LF Datasheet
  • 1: $1.91692
  • 600: $1.77242

281739-8

CONN HEADER VERT 16POS 2.54MM

281739-8 Datasheet
  • 1: $1.91700
  • 4000: $1.91700

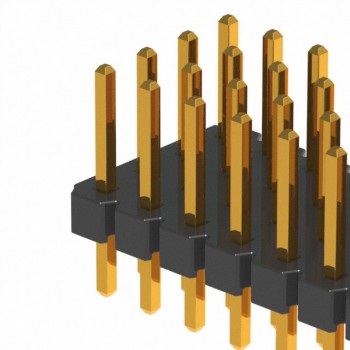

NRPN144RCCN-RC
