0713492038

Woodhead - Molex
In Stock: 171

Can ship immediately

Pricing:
  • 1$1.9488
  • 1,242$1.9488

Quote It

Technical Details

  • Series:C-Grid 71349
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.315" (8.00mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.525" (13.34mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


451-80-220-00-004101

CONN HEADER VERT 20POS 2.54MM

451-80-220-00-004101 Datasheet
  • 1: $1.94880
  • 250: $1.79472

2-644487-7

CONN HEADER VERT 7POS 2.54MM

2-644487-7 Datasheet
  • 1: $1.94898
  • 2000: $1.68742

662018231822

CONN HEADER SMD 18POS 3MM

  • 1: $1.94900
  • 60: $1.94900

4-641202-0

CONN HEADER VERT 10POS 3.96MM

4-641202-0 Datasheet
  • 1: $1.94913
  • 1000: $1.85632

0702800650

CONN HEADER VERT 44POS 2.54MM

0702800650 Datasheet
  • 1: $1.94936
  • 2100: $1.94936

20021112-00260T4LF

CONN HEADER R/A 60POS 1.27MM

  • 1: $1.94940
  • 2460: $1.94940

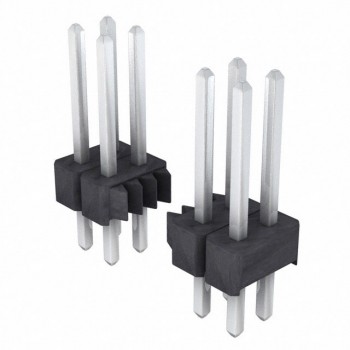

892-80-056-10-003101

CONN HEADER VERT 56POS 2.54MM

892-80-056-10-003101 Datasheet
  • 1: $1.94952
  • 250: $1.79544

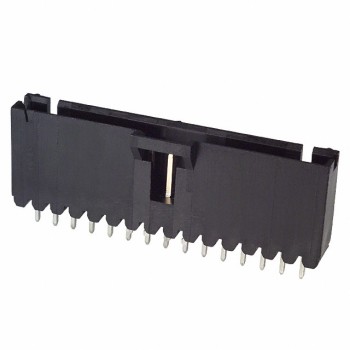

6-104909-4

CONN HEADER VERT 15POS 2.54MM

6-104909-4 Datasheet
  • 1: $1.94953
  • 936: $1.83762

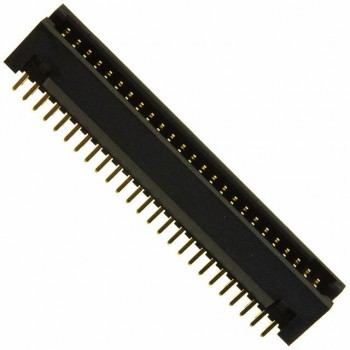

SBH31-NBPB-D25-ST-BK
