In Stock: 173

Can ship immediately

Pricing:
  • 1$1.99694

Quote It

Technical Details

  • Series:High Performance Interconnect (HPI)
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:14
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.169" (4.30mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.00µin (0.076µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Plastic, Halogen Free
  • Features:Solder Retention
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:50V

Related Products


4-644892-4

CONN HEADER VERT 14POS 2.54MM

4-644892-4 Datasheet
  • 1: $1.99696
  • 3000: $1.81541

800-80-026-30-001101

CONN HEADER SMD 26POS 2.54MM

800-80-026-30-001101 Datasheet
  • 1: $1.99710
  • 400: $1.83910

350-80-119-00-012101

CONN HEADER VERT 19POS 1.78MM

350-80-119-00-012101 Datasheet
  • 1: $1.99712
  • 250: $1.83908

860-80-031-10-001101

CONN HEADER VERT 31POS 1MM

  • 1: $1.99723
  • 160: $1.99723

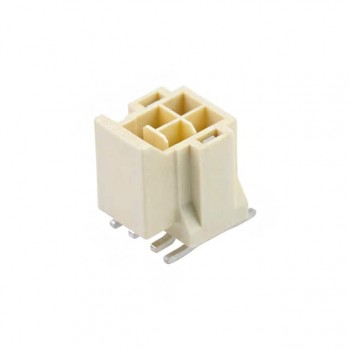

1054292204

NANO-FIT HDR SMT VT DLR 4CKT 15A

  • 1: $1.99746

4-2842244-4

44P,2MM,SHRD HDR,DRVT,SMD,0.1AU,

  • 1: $1.99748

4-2842274-4

44P,2MM,SHRD HDR,DRVT,SMD,0.1AU,

  • 1: $1.99748

641831-3

CONN HEADER VERT 6POS 6.35MM

641831-3 Datasheet
  • 1: $1.99754
  • 2000: $1.86686

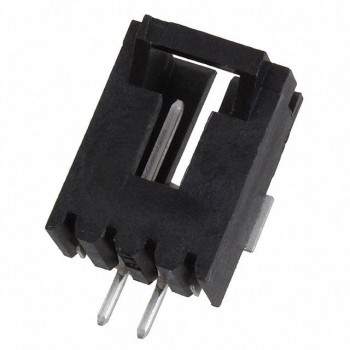

5-147324-1

CONN HEADER SMD R/A 2POS 2.54MM

5-147324-1 Datasheet
  • 1: $3.34000
  • 1200: $1.52717
  • 2400: $1.42185

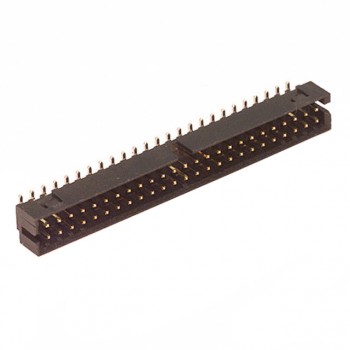

0878325062
