In Stock: 180

Can ship immediately

Pricing:
  • 1$2.00127
  • 300$1.943

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.264" (6.70mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.90µin (0.099µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Green
  • Current Rating (Amps):5A
  • Voltage Rating:-

Related Products


10112684-T03-24ULF

CONN HEADER SMD R/A 24POS 2MM

10112684-T03-24ULF Datasheet
  • 1: $2.00182
  • 384: $1.85098

0010977266

CONN HEADER VERT 26POS 2.54MM

0010977266 Datasheet
  • 1: $2.00192
  • 3000: $2.00192

0022282222

CONN HEADER R/A 22POS 2.54MM

0022282222 Datasheet
  • 1: $2.00200
  • 2000: $2.00200

0022282228

CONN HEADER R/A 22POS 2.54MM

0022282228 Datasheet
  • 1: $2.00200
  • 2000: $2.00200

0015477518

CONN HEADER VERT 18POS 2.54MM

0015477518 Datasheet
  • 1: $2.00245
  • 1224: $2.00245

802-80-028-30-001101

CONN HEADER SMD 28POS 2.54MM

802-80-028-30-001101 Datasheet
  • 1: $2.00253
  • 300: $1.84403

4-2842269-2

42P,2MM,SHRD HDR,DRRT,SN,TR

  • 1: $2.00265

68690-172

CONN HEADER VERT 72POS 2.54MM

68690-172 Datasheet
  • 1: $2.00280
  • 100: $1.94440

67997-266HLF

CONN HEADER VERT 66POS 2.54MM

67997-266HLF Datasheet
  • 1: $2.00280
  • 100: $2.00280

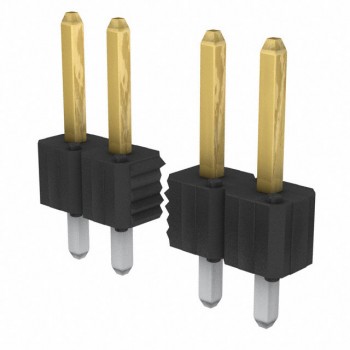

68705-136H
