2009891212

Woodhead - Molex
In Stock: 164

Can ship immediately

Pricing:
  • 1$2.00988

Quote It

Technical Details

  • Series:Slim-Grid 200989
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.280" (7.10mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Pick and Place
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:125V

Related Products


66429-049LF

CONN HEADER R/A 10POS 2.54MM

66429-049LF Datasheet
  • 1: $2.00999
  • 1200: $2.00999

0022288313

CONN HEADER R/A 31POS 2.54MM

0022288313 Datasheet
  • 1: $2.01000
  • 10: $1.82300
  • 25: $1.71080

4-103321-0-26

CONN HEADER VERT 26POS 2.54MM

4-103321-0-26 Datasheet
  • 1: $2.01000
  • 10: $1.82413
  • 25: $1.71261

PEC23SACN

CONN HEADER VERT 23POS 2.54MM

PEC23SACN Datasheet
  • 1: $2.01000
  • 10: $1.82200
  • 25: $1.71040

PEC29SBAN

CONN HEADER R/A 29POS 2.54MM

PEC29SBAN Datasheet
  • 1: $2.01000
  • 10: $1.82400
  • 25: $1.71200

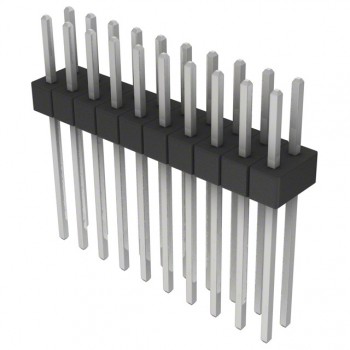

PEC10DAEN

CONN HEADER VERT 20POS 2.54MM

PEC10DAEN Datasheet
  • 1: $2.01000
  • 10: $1.82100
  • 25: $1.70960

PBC07DFEN

CONN HEADER VERT 14POS 2.54MM

PBC07DFEN Datasheet
  • 1: $2.01000
  • 10: $1.82400
  • 25: $1.71200

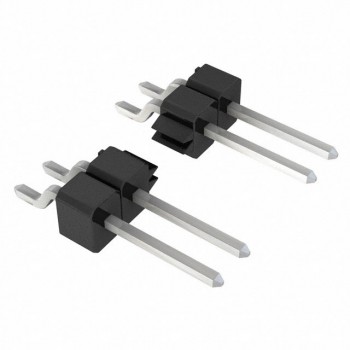

GEC15SGSN-M89
