450-V3-216-00-106191

Preci-Dip
In Stock: 177

Can ship immediately

Pricing:
  • 1$2.0138
  • 600$2.0138

Quote It

Technical Details

  • Series:450
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:Pick and Place
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


20021621-00020D4LF

CONN HEADER SMD 20POS 1.27MM

20021621-00020D4LF Datasheet
  • 1: $2.01381
  • 700: $2.01381

68692-272HLF

CONN HEADER VERT 72POS 2.54MM

68692-272HLF Datasheet
  • 1: $2.01382
  • 500: $2.01382

20021212-00040T1LF

CONN HEADER R/A 40POS 1.27MM

20021212-00040T1LF Datasheet
  • 1: $2.01383
  • 580: $2.01383

1718564011

CONN HEADER VERT 11POS 2.54MM

1718564011 Datasheet
  • 1: $2.01391
  • 750: $1.78375

65863-325LF

CONN HEADER VERT 40POS 2.54MM

65863-325LF Datasheet
  • 1: $2.01438
  • 800: $2.01438

XG4A-3032

CONN HEADER VERT 30POS 2.54MM

XG4A-3032 Datasheet
  • 1: $2.01500
  • 50: $1.96000

XG4A-3035

CONN HEADER R/A 30POS 2.54MM

XG4A-3035 Datasheet
  • 1: $2.01500
  • 50: $1.96000

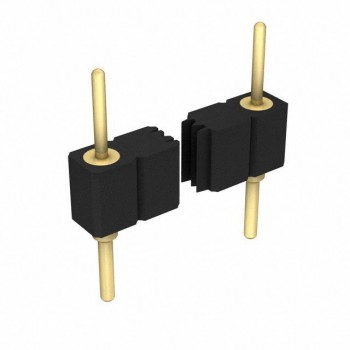

350-10-129-01-714101
