0741640118

Woodhead - Molex
In Stock: 183

Can ship immediately

Pricing:
  • 1$2.02246
  • 1,377$2.02246

Quote It

Technical Details

  • Series:C-Grid 74164
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:18
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.315" (8.00mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.420" (10.67mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


0879209115

CONN HEADER SMD 14POS 2.54MM

0879209115 Datasheet
  • 1: $2.02258
  • 2200: $2.02258

0878337000

CONN HEADER R/A 34POS 2MM

0878337000 Datasheet
  • 1: $2.02289
  • 1400: $1.98636

0878326522

CONN HEADER SMD 32POS 2MM

0878326522 Datasheet
  • 1: $2.02290
  • 1000: $2.02290

95278-802T40LF

CONN HEADER SMD 40POS 2.54MM

95278-802T40LF Datasheet
  • 1: $2.02291
  • 165: $1.87006

A1A-36PA-2.54DS(71)

CONN HEADER R/A 36POS 2.54MM

A1A-36PA-2.54DS(71) Datasheet
  • 1: $2.02300

HIF3FC-10PA-2.54DS(75)

CONN HEADER R/A

  • 1: $2.02300

77313-102-62LF

CONN HEADER VERT 62POS 2.54MM

77313-102-62LF Datasheet
  • 1: $2.02317
  • 300: $1.87057

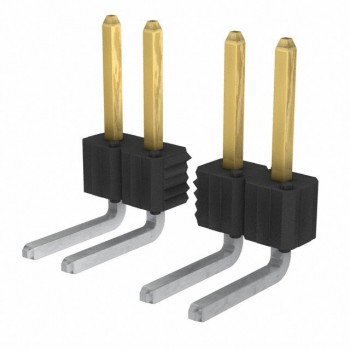

68488-236
