In Stock: 159

Can ship immediately

Pricing:
  • 1$2.02469
  • 1,287$2.02469

Quote It

Technical Details

  • Series:Micro MATE-N-LOK
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:18
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:-
  • Insulation Height:0.364" (9.25mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250V

Related Products


95278-102B34LF

CONN HEADER SMD 34POS 2.54MM

95278-102B34LF Datasheet
  • 1: $2.02482
  • 195: $1.96579

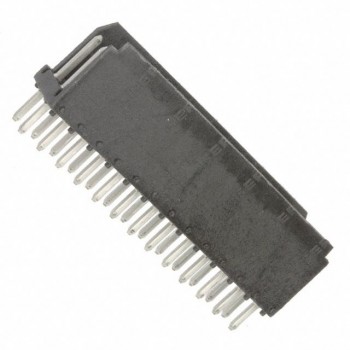

76385-413LF

CONN HEADER VERT 26POS 2.54MM

76385-413LF Datasheet
  • 1: $2.02484
  • 192: $1.87195

HIF3MAW-10PA-2.54DS(63)

CONN HEADER R/A 10POS 2.54MM

  • 1: $2.02500

HIF3MAW-10PA-2.54DSA(63)

CONN HEADER VERT 10POS 2.54MM

  • 1: $2.02500

HIF3MDW-10PA-2.54DS(63)

CONN PIN HEADER PCB R/A

  • 1: $2.02500

HIF3MDW-10PA-2.54DSA(63)

CONN PIN HEADER PCB STR

  • 1: $2.02500

0015910428

CONN HEADER SMD 42POS 2.54MM

0015910428 Datasheet
  • 1: $2.02510
  • 2160: $2.02510

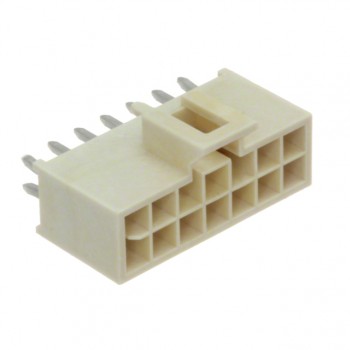

1053102214

CONN HEADER VERT 14POS 2.5MM

1053102214 Datasheet
  • 1: $2.02521
  • 90: $1.70205
  • 180: $1.62097

72454-026VLF

CONN HEADER SMD 26POS 2.54MM

72454-026VLF Datasheet
  • 1: $2.02528
  • 400: $2.02528

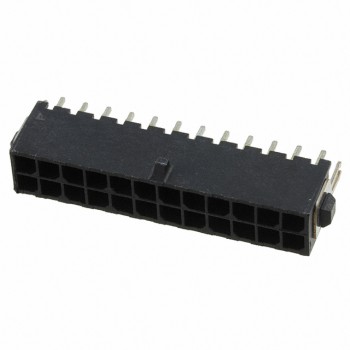

5-794681-4
