894-70-036-10-004101

Preci-Dip
In Stock: 127

Can ship immediately

Pricing:
  • 1$2.02704
  • 250$1.83768

Quote It

Technical Details

  • Series:894
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:36
  • Number of Rows:3
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.587" (14.91mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:0.805" (20.44mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


4-2842285-6

46P,2MM,SHRD HDR,DRVT,SN,TB W/CP

  • 1: $2.02715

0702800770

CONN HEADER VERT 44POS 2.54MM

0702800770 Datasheet
  • 1: $2.02720
  • 2100: $2.02720

75160-301-36LF

CONN HEADER VERT 36POS 2.54MM

75160-301-36LF Datasheet
  • 1: $2.02730
  • 100: $1.87470

75160-318-36LF

CONN HEADER VERT 36POS 2.54MM

75160-318-36LF Datasheet
  • 1: $2.02730
  • 100: $1.87470

77311-815-36LF

CONN HEADER VERT 36POS 2.54MM

77311-815-36LF Datasheet
  • 1: $2.02730
  • 100: $1.87470

77311-103-36LF

CONN HEADER VERT 36POS 2.54MM

77311-103-36LF Datasheet
  • 1: $2.02730
  • 100: $1.87470

77311-125-36LF

CONN HEADER VERT 36POS 2.54MM

77311-125-36LF Datasheet
  • 1: $2.02730
  • 100: $1.87470

77311-805-36LF

CONN HEADER VERT 36POS 2.54MM

77311-805-36LF Datasheet
  • 1: $2.02730
  • 100: $1.87470

77311-427-36LF

CONN HEADER VERT 36POS 2.54MM

77311-427-36LF Datasheet
  • 1: $2.02730
  • 100: $1.87470

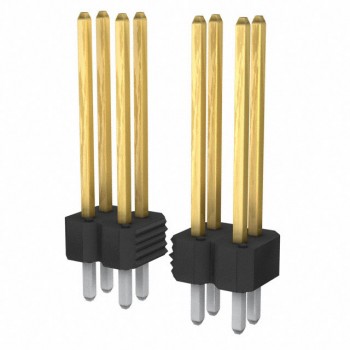

77313-119-36LF
