450-10-216-00-106101

Preci-Dip
In Stock: 120

Can ship immediately

Pricing:
  • 1$2.02948
  • 250$1.77264

Quote It

Technical Details

  • Series:450
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


95278-101B32LF

CONN HEADER SMD 32POS 2.54MM

95278-101B32LF Datasheet
  • 1: $2.02962
  • 210: $1.97062

3-2842291-2

32P,2MM,SHRD HDR,DRVT,0.38AU,TR

  • 1: $2.02967

4-2842278-4

44P,2MM,SHRD HDR,DRVT,SMD,0.1AU,

  • 1: $2.02981

PEC04DGAN

CONN HEADER R/A 8POS 2.54MM

PEC04DGAN Datasheet
  • 1: $2.03000
  • 10: $1.81200
  • 100: $1.49260

0022284313

CONN HEADER VERT 31POS 2.54MM

0022284313 Datasheet
  • 1: $2.03000
  • 10: $1.84300
  • 25: $1.73040

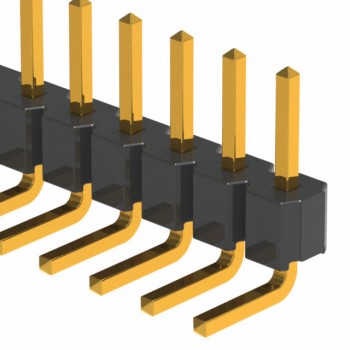

NRPN271PARN-RC

CONN HEADER R/A 27POS 2MM

NRPN271PARN-RC Datasheet
  • 1: $2.03000
  • 10: $1.84200
  • 25: $1.72880

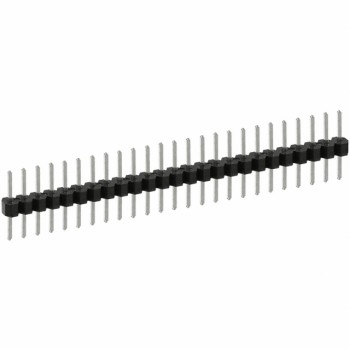

PEC25SABN

CONN HEADER VERT 25POS 2.54MM

PEC25SABN Datasheet
  • 1: $2.03000
  • 10: $1.83800
  • 25: $1.72520

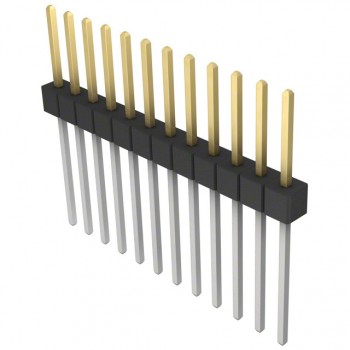

PBC12SFEN

CONN HEADER VERT 12POS 2.54MM

PBC12SFEN Datasheet
  • 1: $2.03000
  • 10: $1.84200
  • 25: $1.72960

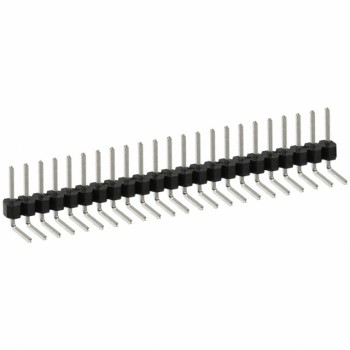

PEC23SBBN

CONN HEADER R/A 23POS 2.54MM

PEC23SBBN Datasheet
  • 1: $2.03000
  • 10: $1.84100
  • 25: $1.72800

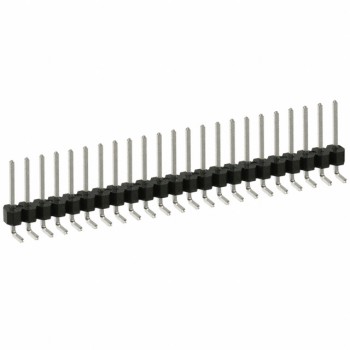

PEC23SGAN
