0879209119

Woodhead - Molex
In Stock: 191

Can ship immediately

Pricing:
  • 1$2.03336
  • 2,200$2.03336

Quote It

Technical Details

  • Series:C-Grid 87920
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.090" (2.29mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Pick and Place
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


890-18-029-10-001101

CONN HEADER VERT 29POS 2.54MM

890-18-029-10-001101 Datasheet
  • 1: $2.03352
  • 250: $1.82440

2-103673-3

CONN HEADER R/A 24POS 2.54MM

2-103673-3 Datasheet
  • 1: $2.03359
  • 1152: $1.91688

830-80-030-10-001101

CONN HEADER VERT 30POS 2MM

830-80-030-10-001101 Datasheet
  • 1: $2.03367
  • 240: $2.03367

0025022010

CONN HEADER VERT 10POS 2.54MM

0025022010 Datasheet
  • 1: $2.03391
  • 2520: $2.03391

351-10-111-00-005101

CONN HEADER VERT 11POS 2.54MM

351-10-111-00-005101 Datasheet
  • 1: $2.03404
  • 250: $1.77652

802-V3-014-30-001101

CONN HEADER SMD 14POS 2.54MM

802-V3-014-30-001101 Datasheet
  • 1: $2.03420
  • 450: $1.77669

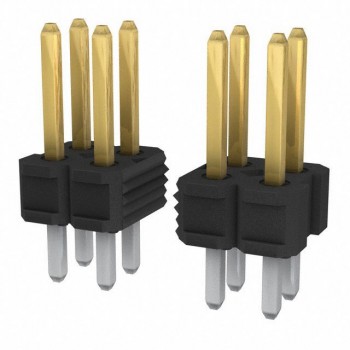

75844-118-32LF
