N3314-1202RB

3M
In Stock: 173

Can ship immediately

Pricing:
  • 1$2.04116
  • 1,050$1.9256

Quote It

Technical Details

  • Series:3000
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 3 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks, Short
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.112" (2.84mm)
  • Overall Contact Length:-
  • Insulation Height:0.310" (7.87mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:Keying Slot, Mounting Flange
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1.75A
  • Voltage Rating:-

Related Products


M50-4910645

CONN HEADER SMD 12POS 1.27MM

M50-4910645 Datasheet
  • 1: $2.04121
  • 56: $1.66632
  • 112: $1.59063

0436500711

CONN HEADER SMD R/A 7POS 3MM

0436500711 Datasheet
  • 1: $2.04134
  • 2240: $2.04134

0417720469

CONN HEADER R/A 8POS 3.96MM

0417720469 Datasheet
  • 1: $2.04147
  • 2400: $2.04147

0741622010

CONN HEADER R/A 10POS 2.54MM

0741622010 Datasheet
  • 1: $2.04160
  • 1458: $2.04160

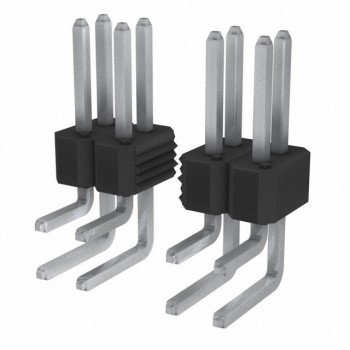

77317-403-56LF

CONN HEADER R/A 56POS 2.54MM

77317-403-56LF Datasheet
  • 1: $2.04243
  • 300: $1.88860

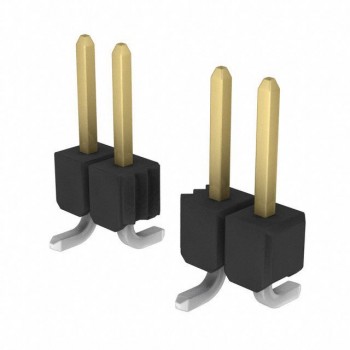

1-146128-3
