SMH100-LPPE-D19-ST-BK

Sullins Connector Solutions
In Stock: 107

Can ship immediately

Pricing:
  • 1$2.04494
  • 1,000$2.04494

Quote It

Technical Details

  • Series:SMH
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:38
  • Number of Rows:2
  • Row Spacing - Mating:0.039" (1.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.071" (1.80mm)



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:0.209" (5.30mm)
  • Insulation Height:0.039" (1.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


SMH100-LPPE-S38-ST-BK

CONN HEADER VERT 38POS 1MM

SMH100-LPPE-S38-ST-BK Datasheet
  • 1: $2.04494
  • 1000: $2.04494

SMH150-LPPE-D19-ST-BK

CONN HEADER VERT 38POS 1MM

SMH150-LPPE-D19-ST-BK Datasheet
  • 1: $2.04494
  • 1000: $2.04494

5-644694-1

CONN HEADER R/A 21POS 2.54MM

5-644694-1 Datasheet
  • 1: $2.04502
  • 500: $2.04502

350-10-117-00-024101

CONN HEADER VERT 17POS 2.54MM

350-10-117-00-024101 Datasheet
  • 1: $2.04504
  • 250: $1.78624

0026485083

CONN HEADER VERT 8POS 3.96MM

0026485083 Datasheet
  • 1: $2.04537
  • 1200: $2.04537

95278-801B34LF

CONN HEADER SMD 34POS 2.54MM

95278-801B34LF Datasheet
  • 1: $2.04538
  • 195: $1.89128

95278-802B46LF

CONN HEADER SMD 46POS 2.54MM

95278-802B46LF Datasheet
  • 1: $2.04540
  • 150: $1.89127

0705670108

CONN HEADER VERT 16POS 2.54MM

0705670108 Datasheet
  • 1: $2.04552
  • 1104: $2.04552

802-80-018-65-001101

CONN HEADER VERT 18POS 2.54MM

802-80-018-65-001101 Datasheet
  • 1: $2.04593
  • 400: $1.88415

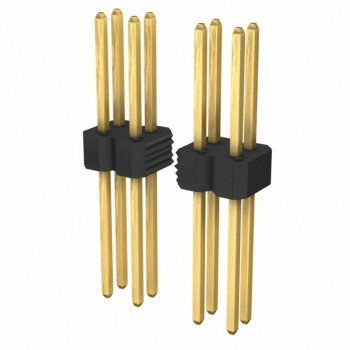

77313-GAD-10LF
