In Stock: 117

Can ship immediately

Pricing:
  • 1$2.04601

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:34
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.146" (3.70mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


GT8E-16DP-DS(26)

CONN HEADER R/A 16POS 2MM

GT8E-16DP-DS(26) Datasheet
  • 1: $2.04602

890-18-022-10-004101

CONN HEADER VERT 22POS 2.54MM

890-18-022-10-004101 Datasheet
  • 1: $2.04612
  • 250: $1.83556

146261-6

CONN HEADER VERT 12POS 2.54MM

146261-6 Datasheet
  • 1: $2.04613
  • 240: $1.89192

1375583-4

CONN HEADER SMD 5POS 2.54MM

1375583-4 Datasheet
  • 1: $2.04614
  • 900: $1.92868

1123431-1

CONN HEADER R/A 24POS 2.5MM

1123431-1 Datasheet
  • 1: $2.04641
  • 6370: $1.94897

800-V3-010-32-002191

CONN HEADER SMD 10POS 2.54MM

  • 1: $2.04645
  • 550: $1.78740

57102-G06-15ULF

CONN HEADER VERT 30POS 2MM

57102-G06-15ULF Datasheet
  • 1: $2.04697
  • 380: $1.89279

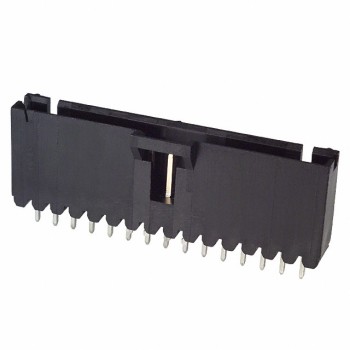

1-104909-4

CONN HEADER VERT 15POS 2.54MM

1-104909-4 Datasheet
  • 1: $2.04699
  • 936: $1.92949

DF20EG-30DP-1V(65)

CONN HEADER SMD 30POS 1MM

  • 1: $2.04704

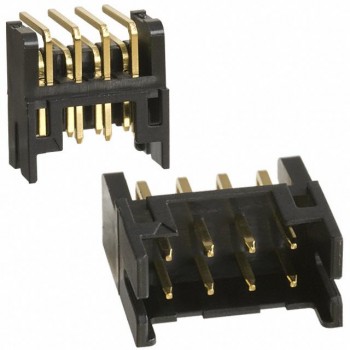

DF11-8DP-2DS(56)
