1511200612

Woodhead - Molex
In Stock: 130

Can ship immediately

Pricing:
  • 1$2.04916
  • 3,600$2.04916

Quote It

Technical Details

  • Series:Milli-Grid 151120
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.248" (6.30mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:Glow Wire Compliant, Pick and Place
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125V

Related Products


0441300002

CONN HEADER R/A 8POS 4.2MM

0441300002 Datasheet
  • 1: $2.04930
  • 2720: $1.95169

0705750041

CONN HEADER R/A 7POS 2.54MM

0705750041 Datasheet
  • 1: $2.04932
  • 16560: $2.04932

98424-F52-28ALF

CONN HEADER SMD 28POS 2MM

98424-F52-28ALF Datasheet
  • 1: $2.04952
  • 600: $1.89517

3-2373375-6

36P,2MM,SHRD HDR,DRVT,SMD,SN,TB

  • 1: $2.04978

10112690-G03-12ULF

CONN HEADER SMD R/A 24POS 2MM

10112690-G03-12ULF Datasheet
  • 1: $2.04994
  • 360: $1.89546

0022284274

CONN HEADER VERT 27POS 2.54MM

0022284274 Datasheet
  • 1: $2.05000
  • 10: $1.85900
  • 25: $1.74480

0022288331

CONN HEADER R/A 33POS 2.54MM

0022288331 Datasheet
  • 1: $2.05000
  • 10: $1.86100
  • 25: $1.74720

929835-01-29

CONN HEADER R/A 29POS 2.54MM

929835-01-29 Datasheet
  • 1: $2.05000
  • 10: $1.85700
  • 25: $1.74320

4-103185-0-21

CONN HEADER VERT 21POS 2.54MM

4-103185-0-21 Datasheet
  • 1: $2.05000
  • 10: $1.86344
  • 25: $1.74933

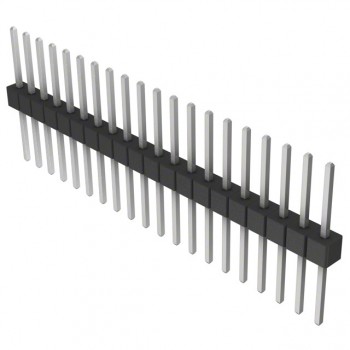

PEC20SFCN
