In Stock: 162

Can ship immediately

Pricing:
  • 1$2.05383

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:48
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.146" (3.70mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:78.7µin (2.00µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


DF20EF-30DP-1V(65)

CONN HEADER SMD 30POS 1MM

  • 1: $2.05407

2-644489-8

CONN HEADER R/A 8POS 2.54MM

2-644489-8 Datasheet
  • 1: $2.05440
  • 2000: $1.86764

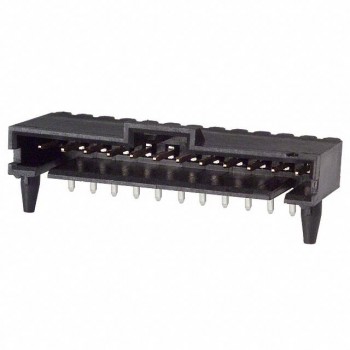

6-104361-1

CONN HEADER R/A 12POS 2.54MM

6-104361-1 Datasheet
  • 1: $2.05453
  • 1152: $1.93659

0416610013

CONN HEADER VERT 14POS 3.96MM

0416610013 Datasheet
  • 1: $2.05470
  • 2400: $2.05470

0705550018

CONN HEADER R/A 19POS 2.54MM

0705550018 Datasheet
  • 1: $2.05485
  • 400: $2.05485

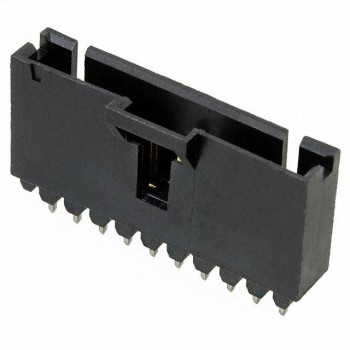

104363-9
