009090020105805+
KYOCERA Corporation- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionWIRE TO BOARD
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 199
Can ship immediately
Pricing:
- 1$2.1
Quote It
Technical Details
- Series:9090, Kyocera
- Package:Bag
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.250" (6.35mm)
- Number of Positions:2
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.146" (3.70mm)
- Overall Contact Length:-
- Insulation Height:0.551" (14.00mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin-Copper
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin-Copper
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-2
- Insulation Color:-
- Current Rating (Amps):-
- Voltage Rating:600VAC
Related Products

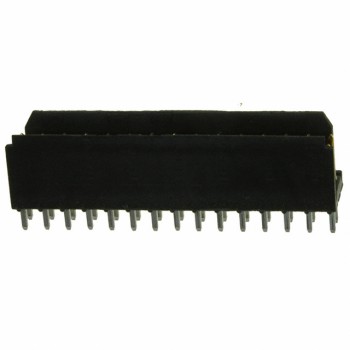

CONN HEADER VERT 17POS 2.54MM
