In Stock: 116

Can ship immediately

Pricing:
  • 1$2.11351

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:46
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.146" (3.70mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.252" (6.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.94µin (0.100µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


0741640112

CONN HEADER R/A 12POS 2.54MM

0741640112 Datasheet
  • 1: $2.11352
  • 1242: $2.11352

800-80-030-40-001101

CONN HEADER SMD R/A 30POS 2.54MM

800-80-030-40-001101 Datasheet
  • 1: $2.11364
  • 250: $1.94636

929834-09-36

CONN HEADER VERT 36POS 2.54MM

929834-09-36 Datasheet
  • 1: $2.11400
  • 300: $2.11400

852-80-018-30-001101

CONN HEADER SMD 18POS 1.27MM

852-80-018-30-001101 Datasheet
  • 1: $2.11418
  • 400: $1.94690

0430451283

CONN HEADER VERT 12POS 3MM

0430451283 Datasheet
  • 1: $2.11424
  • 1120: $2.11424

640466-3

CONN HEADER VERT 5POS 6.35MM

640466-3 Datasheet
  • 1: $2.11482
  • 2600: $1.97647

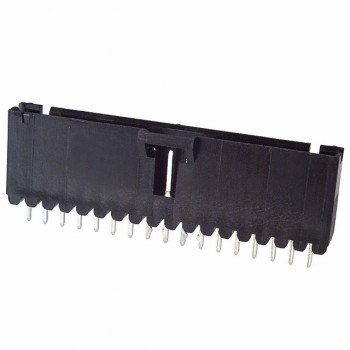

1-103669-6
