In Stock: 181

Can ship immediately

Pricing:
  • 1$2.1168
  • 50$2.1168

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:36
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.450" (11.43mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


0878313050

CONN HEADER VERT 30POS 2MM

  • 1: $2.11708
  • 800: $2.11708

6-146260-0

CONN HEADER VERT 20POS 2.54MM

6-146260-0 Datasheet
  • 1: $2.11735
  • 4000: $1.95778

GT8E-10P-2V(01)

CONN PIN HEADER SMD STR

  • 1: $2.11750

SMS4PH4TR29

CONN HEADER VERT 4POS 5.08MM

  • 1: $2.11752
  • 250: $2.01252

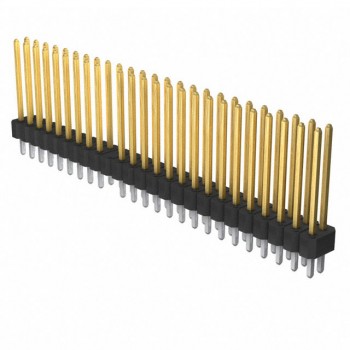

77314-153LF
