In Stock: 133

Can ship immediately

Pricing:
  • 1$2.20932
  • 630$2.20932

Quote It

Technical Details

  • Series:Minitek127® 20021621
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.327" (8.30mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Plastic
  • Features:Keying Slot, Pick and Place
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


75844-156-26LF

CONN HEADER VERT 26POS 2.54MM

75844-156-26LF Datasheet
  • 1: $2.20932
  • 600: $2.04273

0307005208

CONN HEADER R/A 20POS 2.54MM

0307005208 Datasheet
  • 1: $2.20936
  • 1053: $2.20936

0307005209

CONN HEADER R/A 20POS 2.54MM

0307005209 Datasheet
  • 1: $2.20936
  • 1053: $2.20936

95278-802-50LF

CONN HEADER SMD 50POS 2.54MM

95278-802-50LF Datasheet
  • 1: $2.20937
  • 300: $2.04277

77313-402-66LF

CONN HEADER VERT 66POS 2.54MM

77313-402-66LF Datasheet
  • 1: $2.20937
  • 300: $2.04277

77313-418-66LF

CONN HEADER VERT 66POS 2.54MM

77313-418-66LF Datasheet
  • 1: $2.20937
  • 300: $2.04277

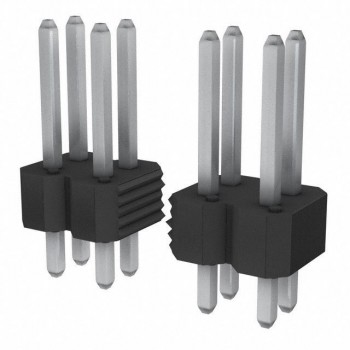

77313-427-66LF
