350-V3-115-00-106101

Preci-Dip
In Stock: 190

Can ship immediately

Pricing:
  • 1$2.219
  • 250$1.93824

Quote It

Technical Details

  • Series:350
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:15
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.141" (3.60mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.116" (2.95mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


15120082601000

CONN HEADER SMD 8POS 1.27MM

15120082601000 Datasheet
  • 1: $2.21911
  • 280: $2.21911

802-10-016-65-001101

CONN HEADER VERT 16POS 2.54MM

802-10-016-65-001101 Datasheet
  • 1: $2.21935
  • 190: $2.21935

3-316080-2

CONN HEADER R/A 10POS 5.08MM

3-316080-2 Datasheet
  • 1: $2.21969
  • 4900: $1.97833

852-10-020-30-001191

CONN HEADER SMD 20POS 1.27MM

  • 1: $2.21981
  • 750: $2.21981

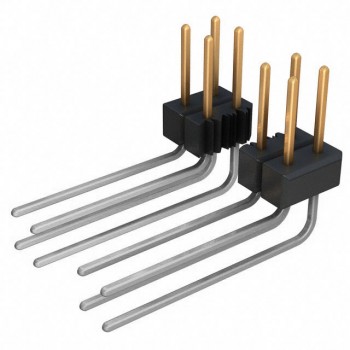

PBC06DBEN

CONN HEADER R/A 12POS 2.54MM

PBC06DBEN Datasheet
  • 1: $2.22000
  • 10: $1.98500
  • 100: $1.63470

0022288332

CONN HEADER R/A 33POS 2.54MM

0022288332 Datasheet
  • 1: $2.22000
  • 10: $2.01300
  • 25: $1.88960

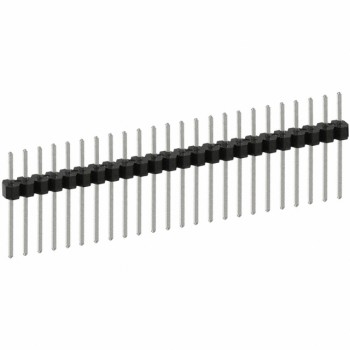

PEC24SADN

CONN HEADER VERT 24POS 2.54MM

PEC24SADN Datasheet
  • 1: $2.22000
  • 10: $2.01900
  • 25: $1.89520

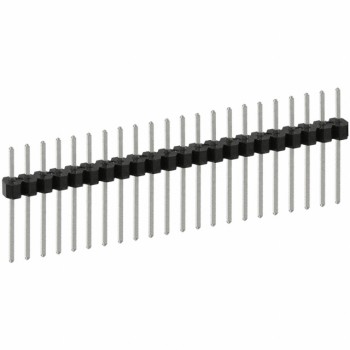

PEC22SAEN

CONN HEADER VERT 22POS 2.54MM

PEC22SAEN Datasheet
  • 1: $2.22000
  • 10: $2.01200
  • 25: $1.88920

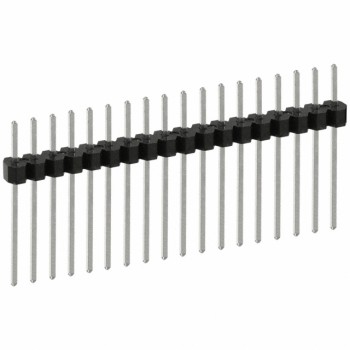

PEC18SAFN

CONN HEADER VERT 18POS 2.54MM

PEC18SAFN Datasheet
  • 1: $2.22000
  • 10: $2.01400
  • 25: $1.89080

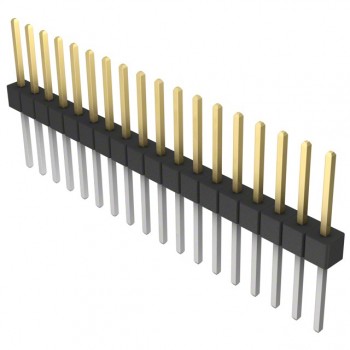

PBC18SFCN
