In Stock: 197

Can ship immediately

Pricing:
  • 1$2.22214
  • 1,440$2.02433

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.320" (8.13mm)



  • Contact Length - Post:0.250" (6.35mm)
  • Overall Contact Length:0.660" (16.76mm)
  • Insulation Height:0.440" (11.18mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


0877594850

CONN HEADER SMD 48POS 2MM

  • 1: $2.22250

0705459046

CONN HEADER VERT 12POS 2.54MM

0705459046 Datasheet
  • 1: $2.22250
  • 672: $2.15900

800-10-021-20-001101

CONN HEADER R/A 21POS 2.54MM

800-10-021-20-001101 Datasheet
  • 1: $2.22252
  • 250: $1.94124

1241148-3

CONN HEADER SMD 6POS 2.54MM

1241148-3 Datasheet
  • 1: $2.22258
  • 900: $2.22258

0713491007

CONN HEADER SMD 18POS 2.54MM

0713491007 Datasheet
  • 1: $2.22300
  • 1224: $2.22300

1-104344-4

CONN HEADER VERT 16POS 2.54MM

1-104344-4 Datasheet
  • 1: $2.22309
  • 2000: $2.07573

86469-3

CONN HEADER VERT 3POS 3.96MM

86469-3 Datasheet
  • 1: $2.22377
  • 512: $2.03584

98424-G52-16KLF

MINITEK

  • 1: $2.22393

5-103542-7

CONN HEADER VERT 16POS 2.54MM

5-103542-7 Datasheet
  • 1: $2.22434
  • 3000: $2.06260

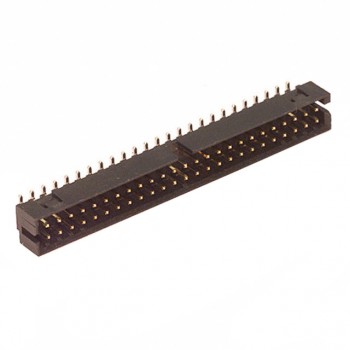

0878327462
