0717640218

Woodhead - Molex
In Stock: 126

Can ship immediately

Pricing:
  • 1$2.226
  • 1,840$2.226

Quote It

Technical Details

  • Series:C-Grid 71764
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:18
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.200" (5.08mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


76385-415LF

CONN HEADER VERT 30POS 2.54MM

76385-415LF Datasheet
  • 1: $2.22601
  • 168: $2.05798

662103136022

CONN HEADER SMD R/A 3POS 3MM

  • 1: $2.22640
  • 400: $2.22640

662103130822

CONN HEADER SMD R/A 3POS 3MM

  • 1: $2.22640
  • 400: $2.22640
  • 800: $1.82160

0702871034

CONN HEADER VERT 72POS 2.54MM

0702871034 Datasheet
  • 1: $2.22662
  • 1000: $2.22662

6-146293-4

CONN HEADER VERT 14POS 2.54MM

6-146293-4 Datasheet
  • 1: $2.22666
  • 2000: $2.07904

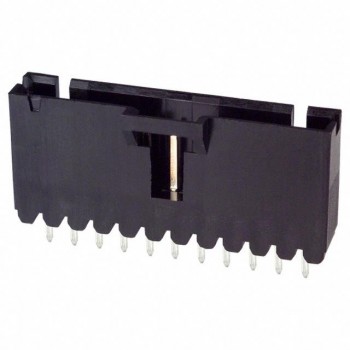

147779-1
