In Stock: 189

Can ship immediately

Pricing:
  • 1$2.2304
  • 600$2.06243

Quote It

Technical Details

  • Series:Minitek® 2.00mm
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:24
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.244" (6.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Keying Slot, Pick and Place
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Cream
  • Current Rating (Amps):2A (AC/DC)
  • Voltage Rating:200V (AC/DC)

Related Products


98424-S52-24ULF

CONN HEADER SMD 24POS 2MM

98424-S52-24ULF Datasheet
  • 1: $2.23040
  • 504: $2.06244

98414-G08-24ULF

CONN HEADER VERT 24POS 2MM

98414-G08-24ULF Datasheet
  • 1: $2.23040
  • 504: $2.06244

68020-272HLF

CONN HEADER R/A 72POS 2.54MM

68020-272HLF Datasheet
  • 1: $2.23107
  • 300: $2.23107

98414-F06-32ULF

CONN HEADER VERT 32POS 2MM

98414-F06-32ULF Datasheet
  • 1: $2.23107
  • 384: $2.06289

98424-F52-30LF

CONN HEADER SMD 30POS 2MM

98424-F52-30LF Datasheet
  • 1: $2.23107
  • 300: $2.06290

77313-102-68LF

CONN HEADER VERT 68POS 2.54MM

77313-102-68LF Datasheet
  • 1: $2.23107
  • 300: $2.06290

77317-403-54LF

CONN HEADER R/A 54POS 2.54MM

77317-403-54LF Datasheet
  • 1: $2.23107
  • 300: $2.06290

77317-803-60LF

CONN HEADER R/A 60POS 2.54MM

77317-803-60LF Datasheet
  • 1: $2.23107
  • 300: $2.06290

57102-G06-19LF

CONN HEADER VERT 38POS 2MM

57102-G06-19LF Datasheet
  • 1: $2.23108
  • 400: $2.06290

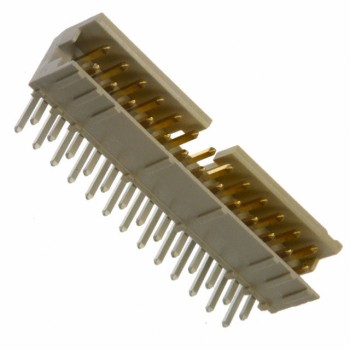

10072354-G01-26ULF
